Tek-Rod® Micro Heating Rod Elements

Price $398.00
Description

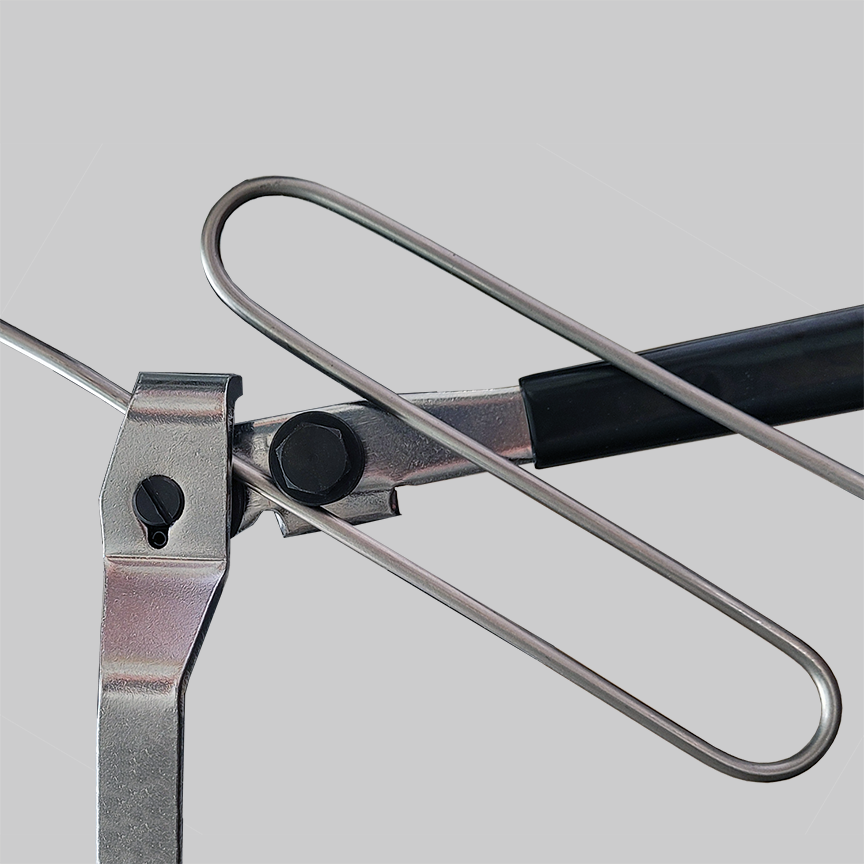

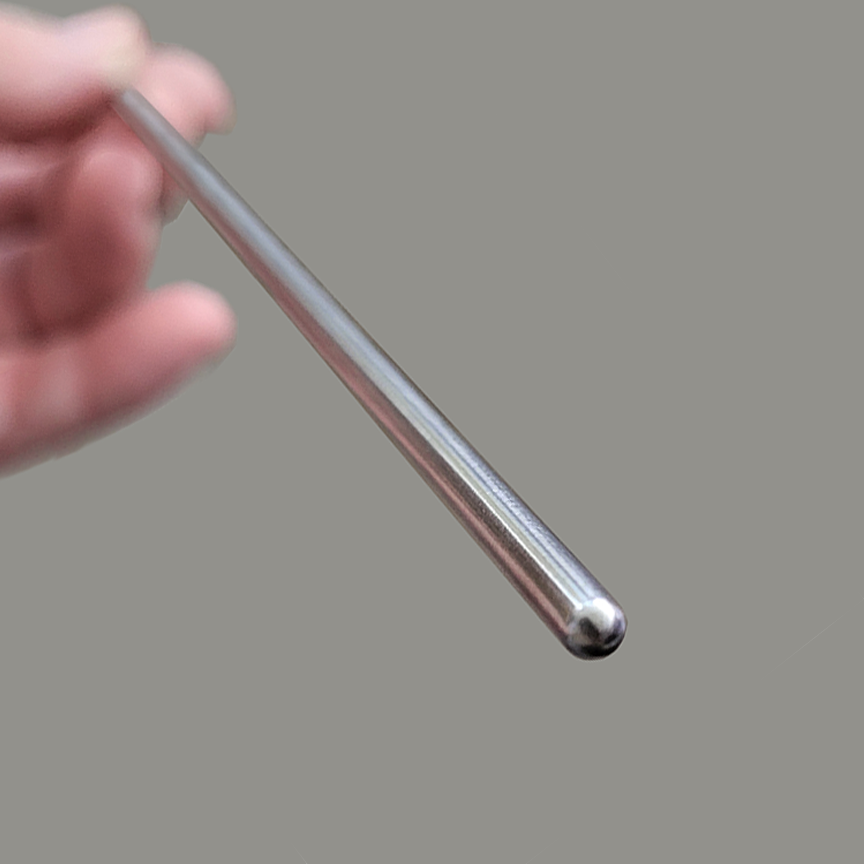

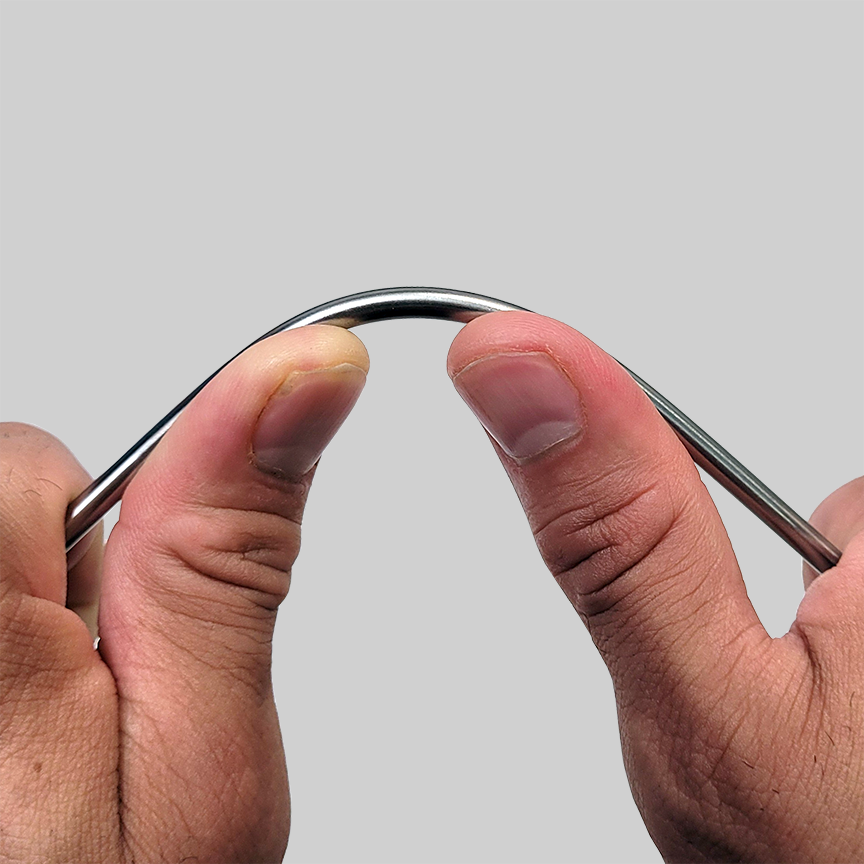

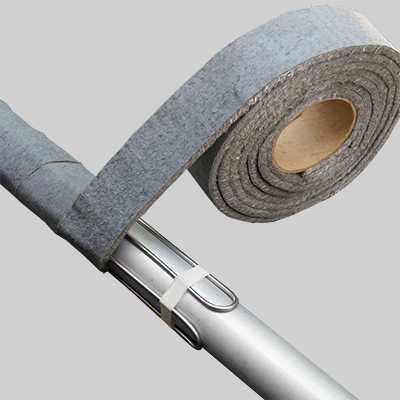

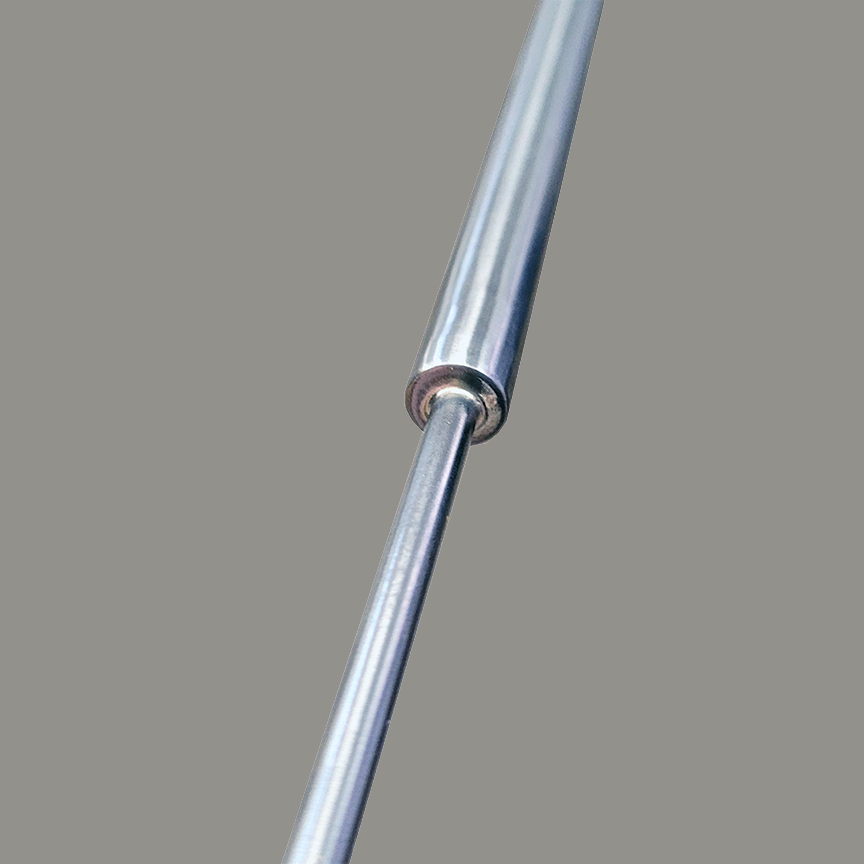

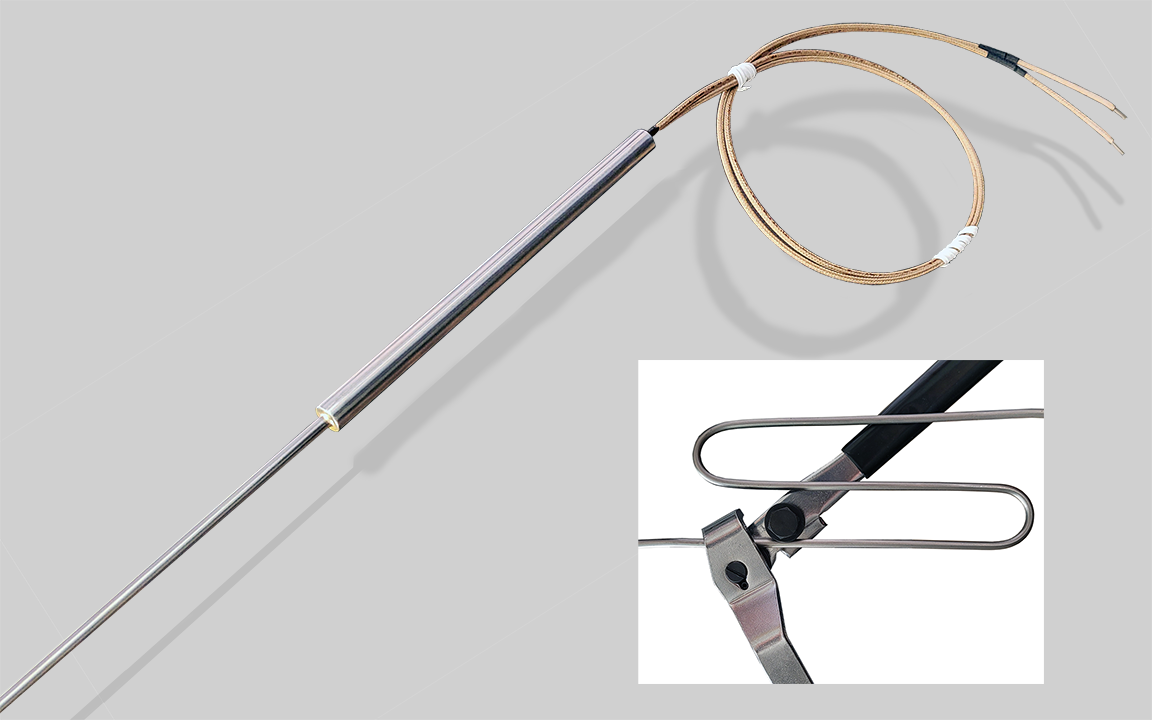

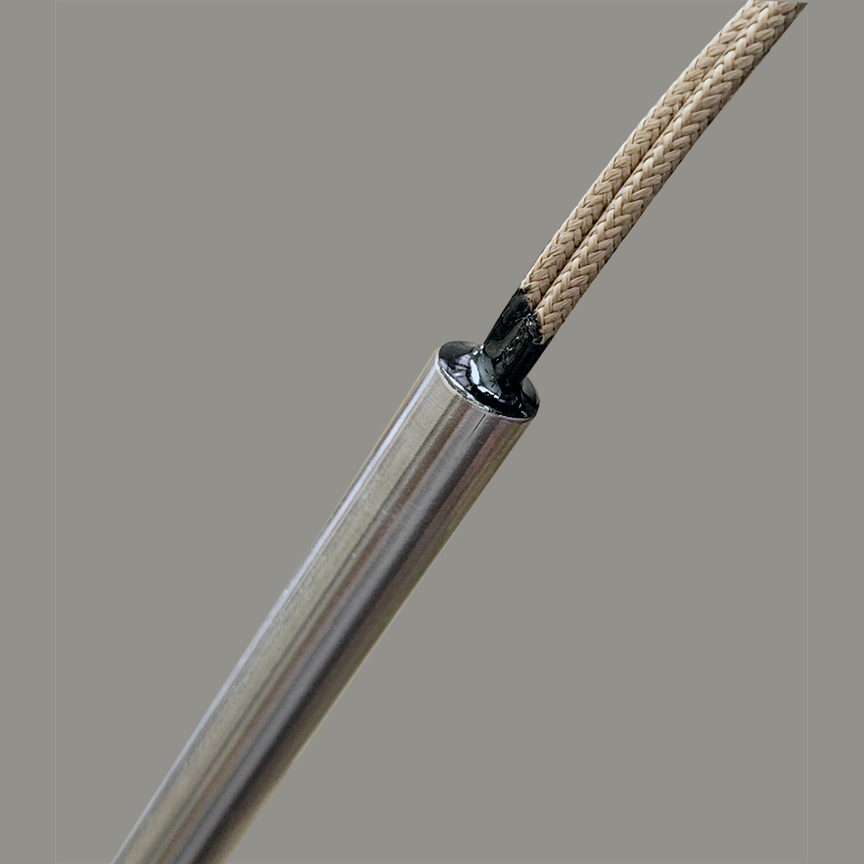

Tek-Rod® Heating elements are completely assembled and ready to use metal sheath heaters. The small diameter tubular shape is easy to form around tubing, valves and other hard to heat geometries, to provide a waterproof, corrosion resistant, electric heat source. Tek-Rod® elements are available in medium or high watt density, in 120V and 240V fixed lengths. The two high temperature lead wires are conveniently located on one end. A six inch long, one half inch diameter welded transition terminates the heated length and provides an epoxy seal exit for the flexible, 24-inch leads.
Specifications

Key features

  • Industrial-grade construction
  • High temperature resistance
  • Chemical and moisture resistant
  • Easy installation
  • Made in USA

Custom Solutions

Can't Find What You Need?

We specialize in custom-designed heating solutions. If this product doesn't match your exact requirements, let us engineer one that does.

info@heatingtapes.com
Mon-Fri 8am-5pm EST
  • Custom sizes and configurations
  • Any temperature range up to 1400°F
  • Fast turnaround available
  • Made in USA

Request a Custom Quote

Tell us about your project and we'll provide a custom solution.

We typically respond within 24 hours

Variants

Select the perfect heating tape configuration for your application from our complete range of options

Voltage Specs/Model No. Price Action
120 Volts 4 ft, 328.1 watts, TR13-161-040D $398.00
120 Volts 6ft, 480.1 watts, TR13-161-060D $409.00
120 Volts 8ft, 666.5 watts, TR13-161-080D $431.00
240 Volts 8ft, 6565.2 watts, TR13-162-080D $431.00
240 Volts 12ft, 960.2 watts, TR13-162-120D $441.00
240 Volts 16ft, 1333.1 watts, TR13-162-160D $452.00
120 Volts 4ft, 480 watts, TR20-161-040D $398.00
120 Volts 6ft, 750 watts, TR20-161-060D $409.00
240 Volts 8ft, 960 watts, TR162-080D $431.00
240 Volts 12ft, 1500 watts, TR20-162-120D $441.00
