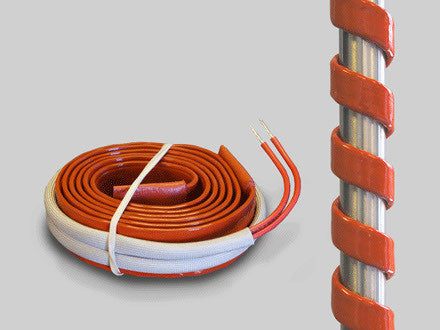

Silicone Extruded Industrial Heating Tapes, 240V
Silicone Extruded Industrial Heating Tapes, 240V
With their medium watt density (15 or 30 watts per feet) and industrial style heating of 120 to 240 watts, these silicone rubber extruded were built for industrial uses. Their rubber outer cover provides abrasion and dielectric protection, making them ideal for applications when moisture, chemical, and abrasion resistance is required. Able to withstand temperatures of 450°F/ 232°C, they are ideal for when you need something that goes beyond the capabilities of elastomer insulated cables and tapes.
FEATURES AND SPECIFICATIONS
| 1/2" Power density: | 15 w/ft (49.2 w/m), 2.5 w/in² (0.4 w/cm²) |
| 1" Power density: | 30 w/ft (98.4 w/m), 2.5 w/in² (0.4 w/cm²) |
| Watts, Volts: | 90W to 1560W, 120V or 240V |
| Lengths: | 6ft (1.8m) to 52ft (21.6m) |
| Width: | ½ in (1.3cm) or 1in (2.5cm) |
| Heat Capability: | 450°F (232°C). Max Exposure, 482°F (250°C) |
| Lead Wires: | 4ft (1.2m) with HO sleeving protection |
| Area Classification: | Non-Hazardous |
| Custom Requirements: | Contact the Factory |
SRD Duo-Tapes® ...Rugged & Flexible, Constant Wattage output.
SRD Duo-Tapes® are silicone heaters, and differ from self-regulating heater cables in that this silicone industrial tape has a constant wattage output. This custom heating tape is constructed specifically for industrial applications that require continuous heat for process temperature maintenance. Sometimes a self-regulating heater cable doesn’t cut it – instead SRD Duo-Tapes®, with their constant output of 15 or 30 watts per foot, can provide the heat needed for these applications. SRD, silicone heaters, are ideal for industrial applications that need continuous heat for process temperature maintenance.
Other cables often fall short when exposed to high temperatures, but this line of silicone industrial tape is up to the task. These heaters have the ability to hold process temperature, where other cables don’t. The Duo-Tapes® can maintain continuous temperatures of up to 450 degrees F (232 degrees C) and even intermittent temperatures of up to 482 degrees F (250 degrees C).
HTS/Amptek® developed this line of heaters to be similar to the higher watt density Laboratory ASR Silicone Duo-Tapes®, but offer longer lengths, longer lead wire lengths, and rugged, lead wire terminations.

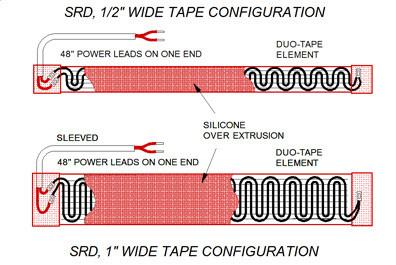

More information about construction is found on the “Assembly Configuration” panel, or contact us today.

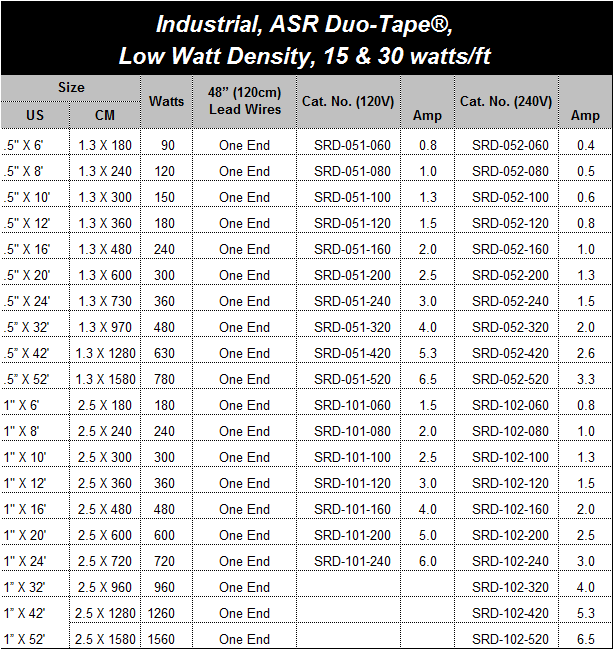

0.5" (1.3 cm) Wide Industrial SRD Duo-Tape®
Standard lengths are available from stock or short turn-around. "Click" the SHOP button to order.
†Note: 240V tapes may be operated at 208V (78% of rated output) or 277V (133% of rated output)
For special configurations, “click” the QUOTE button or call HTS/Amptek® directly. Special configuration features may include:
Specific length Heater
Specific Wattage or Voltage Heater
Specific Power Lead Length
Special power plug/connector
Addition of temperature sensor
1.0 in Wide Industrial SRD Duo-Tapes®
Standard lengths are available from stock or short turn-around. “Click” the SHOP button to order.
†Note: 240V tapes may be operated at 208V (78% of rated output) or 277V (133% of rated output)
For special configurations, “click” the QUOTE button or call HTS/Amptek® directly. Special configuration features may include:
Specific length Heater
Specific wattage or voltage heater
Specific power lead length
Special power plug/connector
Addition of temperature sensor
