Wall Mount Controller
$770.00
Wall Mount Controller
$770.00
description

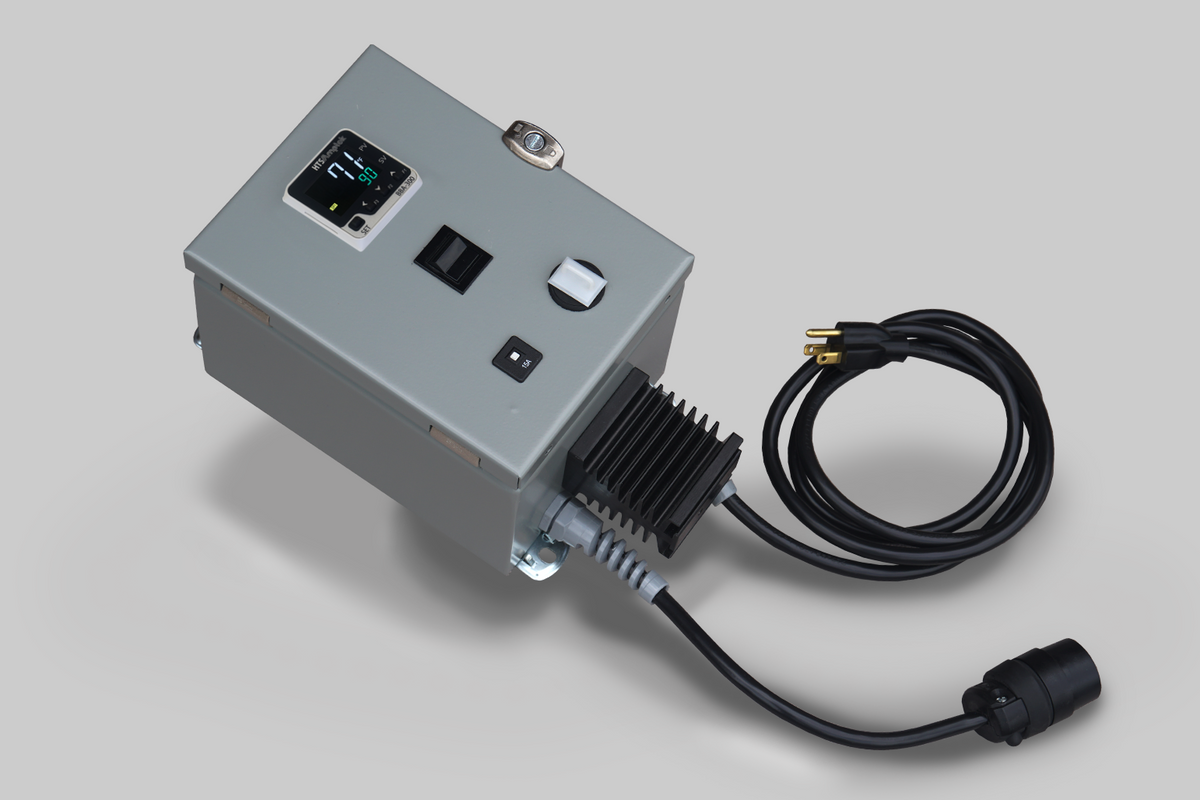

The WM-15 Controller is a Single Zone PID Temperature Controller, featuring easy, auto-tune programming and solid state output, in a rugged metal enclosure.
The WallMount unit has rugged simplicity to get you results without learning a custom programming language. This controller is ideal for most laboratory or industrial heating control requirements.
HTS/Amptek BBA Series Controllers are designed to offer maximum ease of use with pinpoint accuracy. Temperature range may be set in degrees Fahrenheit or Celsius with 1° or 0.1° resolution. Advanced functions may be unlocked to access proportional, integral, and derivative values as well as other variables.
Standard WM-15 Controllers offer a maximum load capacity of 15 amps at 120 or 240VAC. Customized options and configurations are available. “Click” the CUSTOMIZED button or contact the factory for more functionality.
The WallMount unit has rugged simplicity to get you results without learning a custom programming language. This controller is ideal for most laboratory or industrial heating control requirements.
HTS/Amptek BBA Series Controllers are designed to offer maximum ease of use with pinpoint accuracy. Temperature range may be set in degrees Fahrenheit or Celsius with 1° or 0.1° resolution. Advanced functions may be unlocked to access proportional, integral, and derivative values as well as other variables.
Standard WM-15 Controllers offer a maximum load capacity of 15 amps at 120 or 240VAC. Customized options and configurations are available. “Click” the CUSTOMIZED button or contact the factory for more functionality.
FEATURES AND SPECIFICATIONS
| PID Control: | 1/16 DIN, Single, Closed Loop Process Zone |
| Enclosure: | Metal Enclosure W/ Hanger Tabs (6 by 8 by 5.5 in) |
| Accuracy: | +/- 1°, +/-0.25% of Full Scale |
| Sensor Input: | Thermocouple (J/K/T/R/S) or RTD (100Ω) |
| Display: | 7 Segment LED Process & Setpoint |
| Single Output: | SSR (0 Fired), 15A. 120 or 240 VAC |
| Resolution: | 1° or 0.1°, Selectable |
| Power Lead: | 6ft SO Cord with NEMA Plug |
