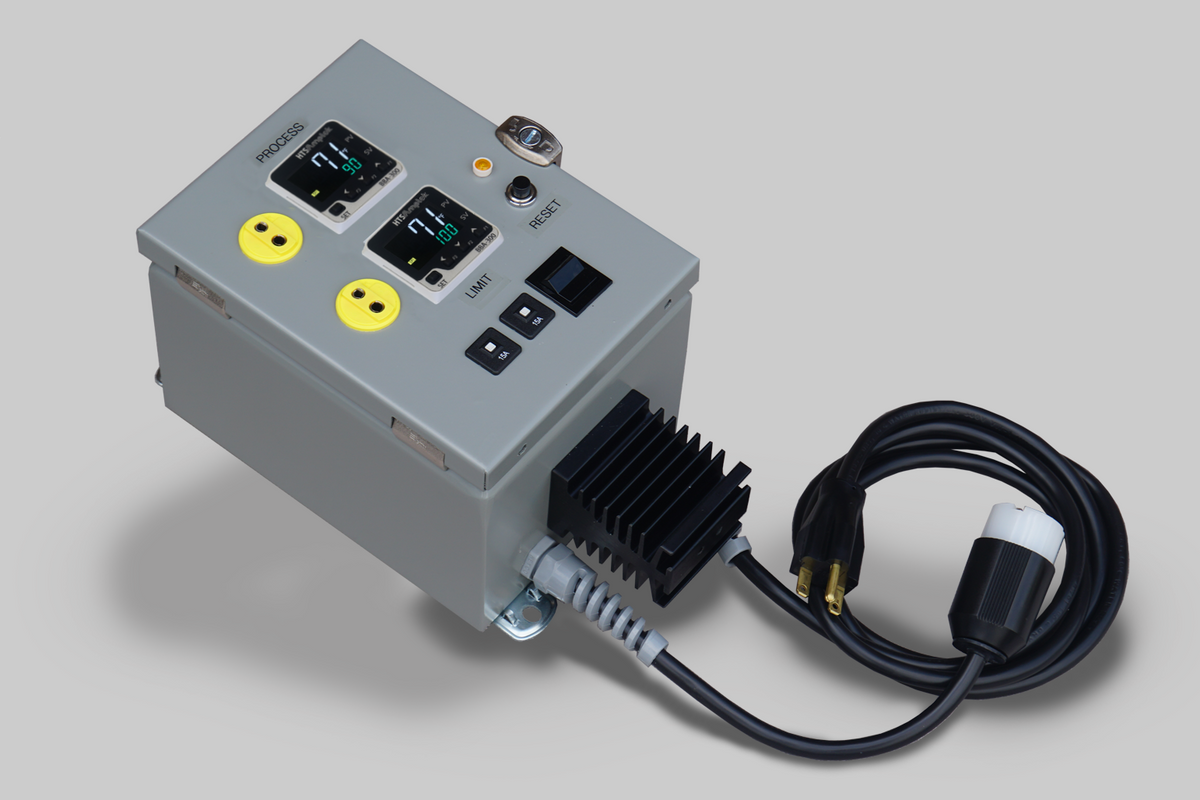

Wall Mount Controller w/Limit

Wall Mount Controller w/Limit

or continue browsing

PID Control1/16 DIN, Single, Closed Loop Process Zone
EnclosureMetal Enclosure W/ Hanger Tabs (6 by 8 by 5.5 in)
Accuracy+/- 1°, +/-0.25% of Full Scale
Sensor InputThermocouple (J/K/T/R/S) or RTD (100Ω)
Display7 Segment LED Process & Setpoint
Single OutputSSR (0 Fired), 15A. 120 or 240 VAC
Resolution1° or 0.1°, Selectable
Power Lead6ft SO Cord with NEMA Plug
• A sensor is required. The Wallmount Controller uses a standard T/C receptacle. To include a Sensor, please select the drop-down "Sensor" box above.
The WM-15 Limit Controller is a Single Zone PID Temperature Controller, with an additional, independent “push to reset” Limit Control with mechanical relay switching.

The Limit control provides protection against any process malfunction, turning off all heating power if Limit is exceeded. The WallMount unit has rugged simplicity to get you results without learning a custom programming language. This controller is ideal for laboratory or industrial heating control requirements.

HTS/Amptek BBA Series Controllers are designed to offer maximum ease of use with pinpoint accuracy. Temperature range may be set in degrees Fahrenheit or Celsius with 1° or 0.1° resolution. Advanced functions may be unlocked to access proportional, integral, and derivative values as well as other variables.

Standard WM-15 Controllers offer a maximum load capacity of 15 amps at 120 or 240VAC. Customized options and configurations are available. “Click” the CUSTOMIZED button or contact the factory for more functionality.
