Silicone Extruded Duo-Tapes®
Silicone Extruded Duo-Tapes®

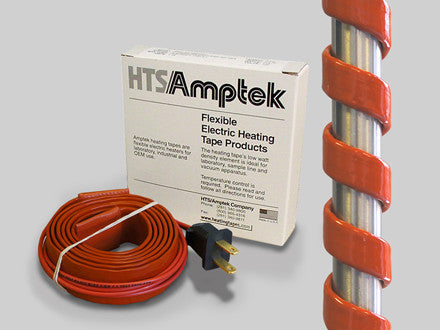

HTS/Amptek® ASR Silicone Rubber Extruded Duo-Tapes® may be operated to temperatures of 450°F (232°C) with short term exposure to 500°F (260°C). They are available in ½ inch and 1 inch widths and lengths from 2 feet to 40 feet. The element is a knitted Duo-Tape® for flexibility and durability, which allows both power leads to be on one end. This construction can operate with occasional moisture present, but may not be submerged. Duo-Tape® heaters are extremely rugged. The Silicone outer cover allows them to be used on practically all surfaces, and for applications where moisture, chemical, and abrasion resistance is required. Do not overlap this element.
For an optional molded plug please select a '-MP' Model NO.
Configuration Options
NOTE: Selecting configuration options limit/refine the available products to match your search criteria.
| 1. Voltage | 2. Watts | 3. Width | 4. Length |
|---|
| Quantity | Part Number | Voltage | Watts | Width | Length | Price |
|---|---|---|---|---|---|---|
| ASR-051-020D | 120V | 52 | 0.5" (1.3 cm) | 2' (060 cm) | 91.00 | |
| ASR-051-040D | 120V | 104 | 0.5" (1.3 cm) | 4' (120 cm) | 100.00 | |
| ASR-051-060D | 120V | 156 | 0.5" (1.3 cm) | 6' (180 cm) | 105.00 | |
| ASR-051-080D | 120V | 208 | 0.5" (1.3 cm) | 8' (240 cm) | 130.00 | |
| ASR-051-100D | 120V | 260 | 0.5" (1.3 cm) | 10' (300 cm) | 137.00 | |
| ASR-051-120D | 120V | 312 | 0.5" (1.3 cm) | 12' (360 cm) | 177.00 | |
| ASR-051-140D | 120V | 364 | 0.5" (1.3 cm) | 14' (420 cm) | 207.00 | |
| ASR-051-160D | 120V | 416 | 0.5" (1.3 cm) | 16' (480 cm) | 237.00 | |
| ASR-051-180D | 120V | 468 | 0.5" (1.3 cm) | 18' (540 cm) | 265.00 | |
| ASR-051-200D | 120V | 520 | 0.5" (1.3 cm) | 20' (600 cm) | 296.00 | |
| ASR-051-240D | 120V | 625 | 0.5" (1.3 cm) | 24' (720 cm) | 316.00 | |
| ASR-051-320D | 120V | 832 | 0.5" (1.3 cm) | 32' (900 cm) | 434.00 | |
| ASR-051-400D | 120V | 1040 | 0.5" (1.3 cm) | 40' (1200 cm) | 541.00 | |
| ASR-051-020D-MP | 120V | 52 | 0.5" (1.3 cm) | 2' (060 cm) | 96.00 | |
| ASR-051-040D-MP | 120V | 104 | 0.5" (1.3 cm) | 4' (120 cm) | 105.00 | |
| ASR-051-060D-MP | 120V | 156 | 0.5" (1.3 cm) | 6' (180 cm) | 110.00 | |
| ASR-051-080D-MP | 120V | 208 | 0.5" (1.3 cm) | 8' (240 cm) | 135.00 | |
| ASR-051-100D-MP | 120V | 260 | 0.5" (1.3 cm) | 10' (300 cm) | 142.00 | |
| ASR-051-120D-MP | 120V | 312 | 0.5" (1.3 cm) | 12' (360 cm) | 182.00 | |
| ASR-051-140D-MP | 120V | 364 | 0.5" (1.3 cm) | 14' (420 cm) | 212.00 | |
| ASR-051-160D-MP | 120V | 416 | 0.5" (1.3 cm) | 16' (480 cm) | 242.00 | |
| ASR-051-180D-MP | 120V | 468 | 0.5" (1.3 cm) | 18' (540 cm) | 270.00 | |
| ASR-051-200D-MP | 120V | 520 | 0.5" (1.3 cm) | 20' (600 cm) | 301.00 | |
| ASR-051-240D-MP | 120V | 624 | 0.5" (1.3 cm) | 24' (720 cm) | 321.00 | |
| ASR-051-320D-MP | 120V | 832 | 0.5" (1.3 cm) | 32' (900 cm) | 439.00 | |
| ASR-051-400D-MP | 120V | 1040 | 0.5" (1.3 cm) | 40' (1200 cm) | 546.00 | |
| ASR-101-020D | 120V | 104 | 1" (2.5 cm) | 2' (060 cm) | 105.00 | |
| ASR-101-040D | 120V | 208 | 1" (2.5 cm) | 4' (120 cm) | 145.00 | |
| ASR-101-060D | 120V | 312 | 1" (2.5 cm) | 6' (180 cm) | 167.00 | |
| ASR-101-080D | 120V | 416 | 1" (2.5 cm) | 8' (240 cm) | 207.00 | |
| ASR-101-100D | 120V | 520 | 1" (2.5 cm) | 10' (300 cm) | 221.00 | |
| ASR-101-120D | 120V | 624 | 1" (2.5 cm) | 12' (360 cm) | 253.00 | |
| ASR-101-140D | 120V | 728 | 1" (2.5 cm) | 14' (420 cm) | 283.00 | |
| ASR-101-160D | 120V | 832 | 1" (2.5 cm) | 16' (480 cm) | 306.00 | |
| ASR-101-180D | 120V | 936 | 1" (2.5 cm) | 18' (540 cm) | 338.00 | |
| ASR-101-200D | 120V | 1040 | 1" (2.5 cm) | 20' (600 cm) | 360.00 | |
| ASR-101-020D-MP | 120V | 104 | 1" (2.5 cm) | 2' (060 cm) | 110.00 | |
| ASR-101-040D-MP | 120V | 208 | 1" (2.5 cm) | 4' (120 cm) | 150.00 | |
| ASR-101-060D-MP | 120V | 312 | 1" (2.5 cm) | 6' (180 cm) | 172.00 | |
| ASR-101-080D-MP | 120V | 416 | 1" (2.5 cm) | 8' (240 cm) | 212.00 | |
| ASR-101-100D-MP | 120V | 520 | 1" (2.5 cm) | 10' (300 cm) | 226.00 | |
| ASR-101-120D-MP | 120V | 624 | 1" (2.5 cm) | 12' (360 cm) | 258.00 | |
| ASR-101-140D-MP | 120V | 728 | 1" (2.5 cm) | 14' (420 cm) | 288.00 | |
| ASR-101-160D-MP | 120V | 832 | 1" (2.5 cm) | 16' (480 cm) | 311.00 | |
| ASR-101-180D-MP | 120V | 936 | 1" (2.5 cm) | 18' (540 cm) | 343.00 | |
| ASR-101-200D-MP | 120V | 1040 | 1" (2.5 cm) | 20' (600 cm) | 365.00 | |
| ASR-052-020D | 240V | 52 | 0.5" (1.3 cm) | 2' (060 cm) | 91.00 | |
| ASR-052-040D | 240V | 104 | 0.5" (1.3 cm) | 4' (120 cm) | 100.00 | |
| ASR-052-060D | 240V | 156 | 0.5" (1.3 cm) | 6' (180 cm) | 105.00 | |
| ASR-052-080D | 240V | 208 | 0.5" (1.3 cm) | 8' (240 cm) | 130.00 | |
| ASR-052-100D | 240V | 260 | 0.5" (1.3 cm) | 10' (300 cm) | 137.00 | |
| ASR-052-120D | 240V | 312 | 0.5" (1.3 cm) | 12' (360 cm) | 177.00 | |
| ASR-052-140D | 240V | 364 | 0.5" (1.3 cm) | 14' (420 cm) | 207.00 | |
| ASR-052-160D | 240V | 416 | 0.5" (1.3 cm) | 16' (480 cm) | 237.00 | |
| ASR-052-180D | 240V | 468 | 0.5" (1.3 cm) | 18' (540 cm) | 265.00 | |
| ASR-052-200D | 240V | 520 | 0.5" (1.3 cm) | 20' (600 cm) | 296.00 | |
| ASR-052-240D | 240V | 624 | 0.5" (1.3 cm) | 24' (720 cm) | 316.00 | |
| ASR-052-320D | 240V | 832 | 0.5" (1.3 cm) | 32' (900 cm) | 434.00 | |
| ASR-052-400D | 240V | 1040 | 0.5" (1.3 cm) | 40' (1200 cm) | 541.00 | |
| ASR-102-020D | 240V | 104 | 1" (2.5 cm) | 2' (060 cm) | 105.00 | |
| ASR-102-040D | 240V | 208 | 1" (2.5 cm) | 4' (120 cm) | 145.00 | |
| ASR-102-060D | 240V | 312 | 1" (2.5 cm) | 6' (180 cm) | 167.00 | |
| ASR-102-080D | 240V | 416 | 1" (2.5 cm) | 8' (240 cm) | 207.00 | |
| ASR-102-100D | 240V | 520 | 1" (2.5 cm) | 10' (300 cm) | 221.00 | |
| ASR-102-120D | 240V | 624 | 1" (2.5 cm) | 12' (360 cm) | 253.00 | |
| ASR-102-140D | 240V | 728 | 1" (2.5 cm) | 14' (420 cm) | 283.00 | |
| ASR-102-160D | 240V | 832 | 1" (2.5 cm) | 16' (480 cm) | 306.00 | |
| ASR-102-180D | 240V | 936 | 1" (2.5 cm) | 18' (540 cm) | 338.00 | |
| ASR-102-200D | 240V | 1040 | 1" (2.5 cm) | 20' (600 cm) | 360.00 |
FEATURES AND SPECIFICATIONS
| Power density: | 4.3 w/in² (0.67 w/cm²) |
| Watts, Volts: | 52W to 1040W, 120V or 240V |
| Lengths: | 2ft (60 cm) to 40ft (1200 cm) |
| Width: | ½" (1.3 cm) or 1" (2.5 cm) |
| Heat Capability: | 450°F (232°C) |
| Lead Wires: | 24" (60 cm) on ONE end of the Tape |
| Molded Plug: | Optional for 120V only, Select -MP |
DUOTAPE® ELEMENT
The heating element is multi-strand resistance wire, braided with AMOX™ yarn and knitted in to the serpentine shape to minimize thermal shock and tensile stress from expansion and contraction. The side-by-side wire configuration permits the lead wires to be on one end. The Duo-Tape® configuration is the most popular of all our flexible elements.
EXTRUDED IN SILICONE RUBBER
The silicone encapsulates the element in a soft, (50 durometer) extrusion. Flexible and durable, the ASR tape will wrap around small ¼ in. (6mm) tubing. The Silicone Duo-Tapes® may be used on conductive surfaces (use directly on metal), and the silicone extrusion provides resistance to moisture, chemicals, and abrasion. Heat additives provide capability to 450°F (232°C).
MOLDED PLUG OPTION (120V)
Standard ASR tapes do not include a power plug. 120V tapes may be ordered with the optional molded plug (-MP). No power plug option is available for 240V tapes. Commercially available connectors may be installed for the customer or sourced locally. Duo-Tapes® do not utilize a grounding circuit and provide a two wire connection. For Earth Ground Leakage protection a circuit protector (30ma GFCI) is recommended.
