Heavy Insulated Mono-Tapes™, 240V

Heavy Insulated Mono-Tapes™, 240V

Heavy Insulated Mono-Tapes™, 240V

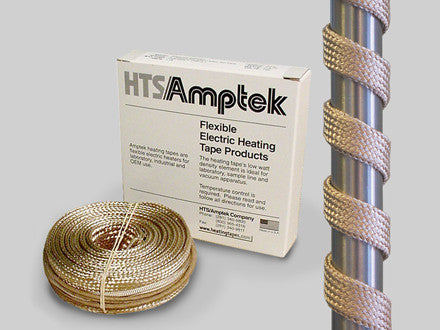

HTS/Amptek® Heavy Mono-Tapes™ are heating tapes with a protective, fiberglass overbraid. Fiberglass, medium watt density Mono-Tapes™ are for use to 900°F (482°C). AMOX™, high watt density Mono-Tapes™ may operate to exposure temperatures of 1400°F (760°C). These are Heavy Insulated Tapes that may be used on metal conductive surfaces, as well as glass and ceramic, and are available in ½ inch and 1 inch widths and lengths from 2 feet to 16 feet. The serpentine element provides flexibility and durability. Power leads are on each end. The knitted construction, allows for flexibility and even distribution of heat. This model is offered in two heats and watt densities. Medium watt 8.67, or High 13 watts per square inch, for the most aggressive heat response. Do not overlap this element.

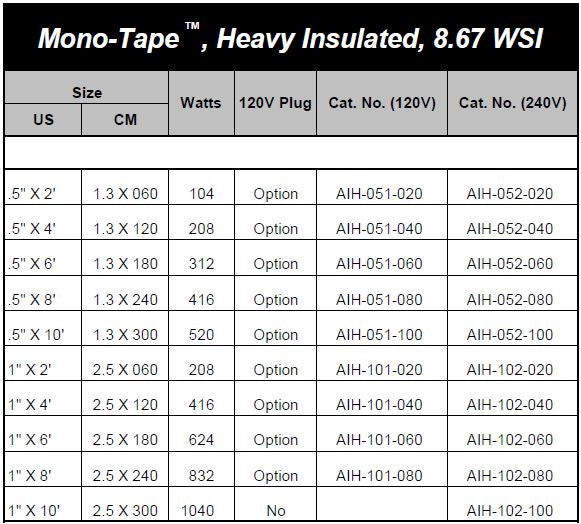

Power density: 8.67, & 13.0 w/in² (1.4, 2.0 w/cm²)
Watts, Volts: 104W to 1248W, 120V or 240V
Lengths: 2ft (60cm) to 1ft (360cm)
Width: ½ in (1.3cm) or 1in (2.5cm)
Heat Capability: 900°F (482°C) or 1400°F (760°C)
Lead Wires: 24in (60cm) on one end of the tape
Custom Configurations Available

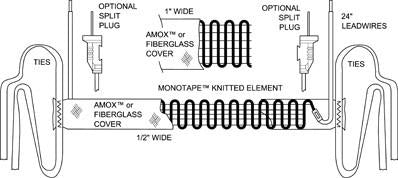

Mono-Tape™ Element
The heating element is multi-strand resistance wire, braided with AMOX™ (AWH model) or fiberglass (AIH model) yarn and knitted into the serpentine shape to minimize thermal shock and tensile stress from expansion and contraction. The single wire configuration requires the lead wires to be located on each end of the Heavy Insulated Mono-Tape™.

AMOX™ or Fiberglass Overbraid Cover
The Heavy Insulated Tapes have flexible, AMOX™ or fiberglass braided sleeving over the heating element to provide additional dielectric strength for application on conductive surfaces (use directly on metal). Heavy Mono-Tapes™ will wrap around small 3/8” to ¼” (8mm to 6mm) tubing. Fiberglass tapes (AIH models) provide capability up to 900°F (482°C) and AMOX™ tapes (AWH models) to 1400°F (760°C).

Split Molded Plug Option (120V)
Standard Mono-Tapes™ do not include a power plug. 120V tapes may be ordered with the optional molded plug (-MP). No power plug option is available for 240V tapes. Commercially available connectors may be installed for the customer or sourced locally. Mono-Tapes™ do not utilize a grounding circuit and provide a two wire connection. For Earth Ground Leakage protection a circuit protector (30ma GFCI) is recommended.
